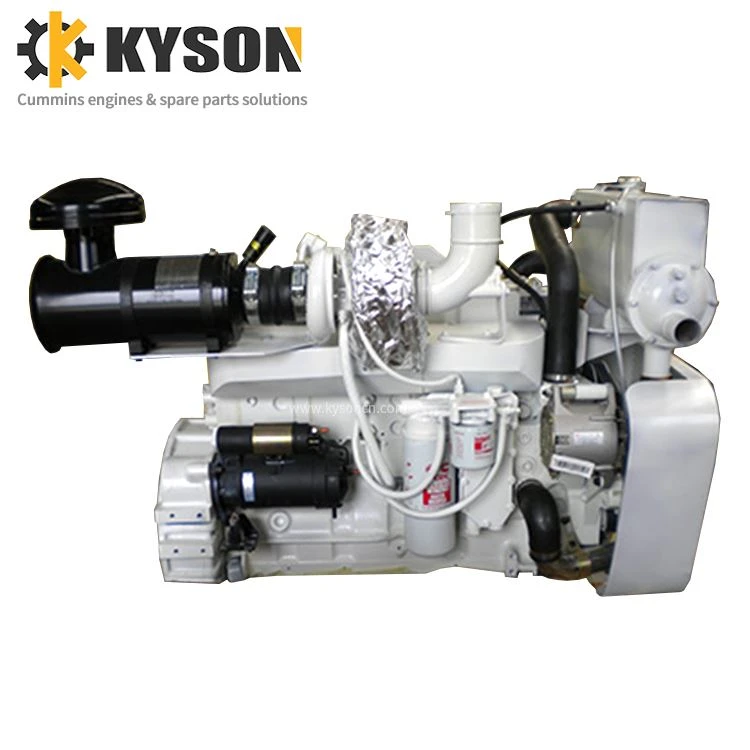

Marine Propulsion And Auxiliary Engine Assy
Type: 4 cylinder in line
Displacement: 3.9L
Bore&Stroke: 102×120 mm
Dry Weight: 338 KG
Send Inquiry
Product Details ofMarine Propulsion And Auxiliary Engine Assy
Chongqing Kyson Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of marine propulsion and auxiliary engine assy in China. With abundant experience, our factory offer high quality products made in China with competitive price. Welcome to place an order.
|

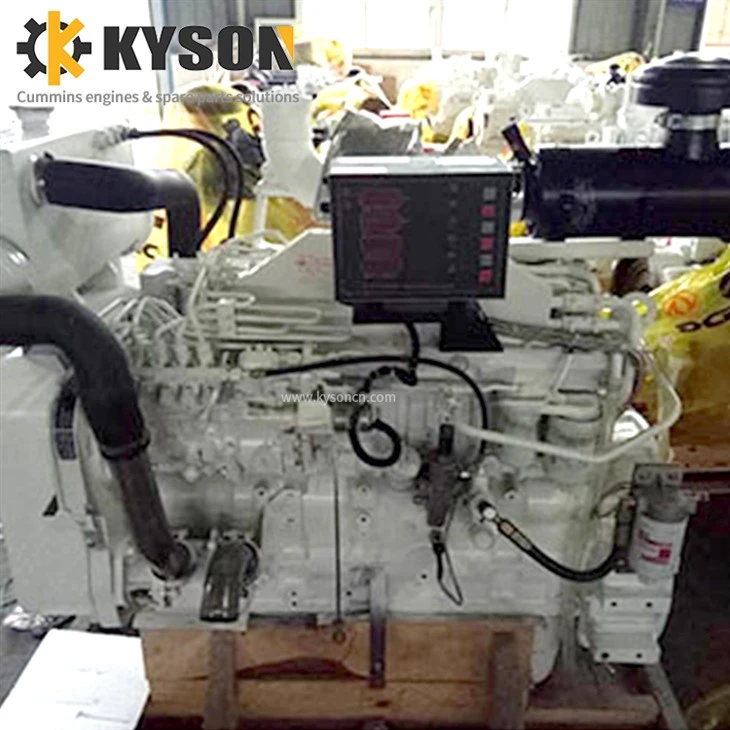

General data of Cummins 4BTA3.9-GM47 Marine Auxiliary Engine |
|
|
Engine Mode |
Cummins 4BTA3.9-GM47 |
|
Type |
4 cylinder in line |
|
Displacement |
3.9L |
|
Bore&Stroke |
102×120 mm |
|
Dry Weight |
338 KG |
|
Dimension(L*W*H) |
867*544*988 (mm) |
|
Center of gravity from front face of block |
262 mm |
|
Center of gravity above crankshaft centerline |
160 mm |
|
Technical data of Cummins 4BTA3.9-GM47 Marine Auxiliary Engine |
|
|
Aspiration |
Turbocharged &Water-Air Intercooled |
|
Fuel System |
APump/GAC Governor Regulation ≤3% |
|
Coolant capacity-engineonly |
7.9 litre |
|
Idle speed |
950-1050 |
|
Compressionratio |
|
|
Piston Speed |
|
|
Firing Order |
1-3-4-2 |
|
Performance Date of Cummins 4BTA3.9-GM47 Marine Auxiliary Engine |
|
|
Rated Output |
47KW/63HP |
|
Standby Output |
52KW/70HP |
|
Rated Speed(RPM) |
1500 |
|
Frequency(HZ) |
50 |
|
Fuel Consumption/rated output |
211 g/KW.h |
|
Fuel Consumption/standby output |
213 g/KW.h |
