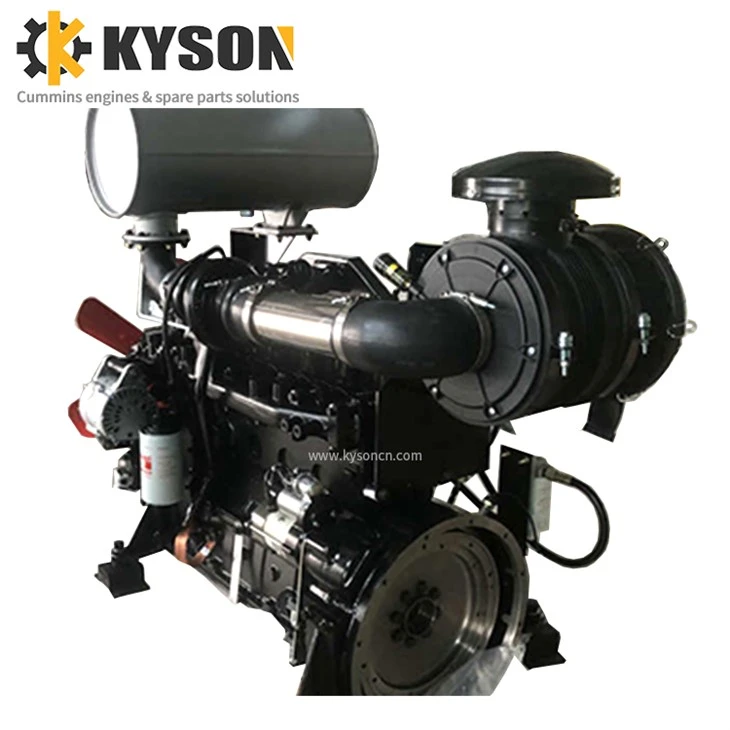

Cummins DCEC 6BT5.9-P130 Pump Drive Engine
Type: 6 cylinder in line
Displacement: 5.9L
Bore&Stroke: 102×120 mm
Send Inquiry
Product Details ofCummins DCEC 6BT5.9-P130 Pump Drive Engine
Chongqing Kyson Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cummins dcec 6bt5.9-p130 pump drive engine in China. With abundant experience, our factory offer high quality products made in China with competitive price. Welcome to place an order.
|
General data of Cummins 6BT5.9-P130 Pump Drive Engine |
|
|
Engine Model |
Cummins 6BT5.9-P130 |
|
Type |
6 cylinder in line |
|
Displacement |
5.9L |
|
Bore&Stroke |
102×120 mm |
|
Application |
Water pump set |
|
Dimension(L*W*H) |
1020*730*1000(mm) |
|
Weight |
440 kg |
|
Technical data of Cummins 6BT5.9-P130 Pump Drive Engine |
|
|
Aspiration |
Turbocharged |
|
Fuel System |
Mechanical Pump/ElectronicGovernor |
|
Maximum No Load Speed |
1555-1595 RPM |
|
Low idle speed |
750-850 RPM |
|
Compression ratio |
N/A |
|
Max overspeed |
2900 RPM |
|
Firing Order |
1-5-3-6-2-4 |
|
Performance Date of Cummins 6BT5.9-P130 Pump Drive Engine |
|
|
Rated Output |
96KW/130HP |
|
Standby Output |
N/A |
|
Rated Speed(RPM) |
1500 |
|
Torque |
611 N.m@1500 RPM |
|
Fuel Consumption/standby output |
20 kg/hr |
The above is general technical information of DCEC 6BT5.9-P130 diesel engine for water and fire pump application. It will be also for us to supply the engine power packing with PTO.
We can supply the Cummins DCEC 6BT5.9-P130 genuine engine parts.
