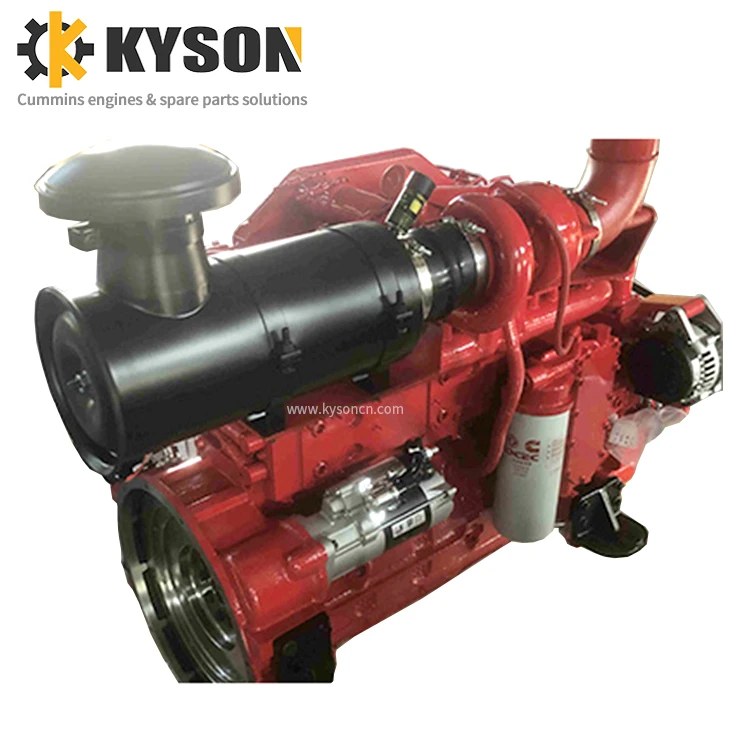

Cummins DCEC 6CTA8.3-P220 Pump Drive Engine
Type: 6 cylinder in line
Displacement: 8.3L
Bore&Stroke: 114×135 mm
Application: Water pump set
Send Inquiry
Product Details ofCummins DCEC 6CTA8.3-P220 Pump Drive Engine
Chongqing Kyson Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cummins dcec 6cta8.3-p220 pump drive engine in China. With abundant experience, our factory offer high quality products made in China with competitive price. Welcome to place an order.
|
General data of Cummins DCEC 6CTAA8.3-P260 Pump Drive Engine |
|
|
Engine Model |
Cummins6CTAA8.3-P260 |
|
Type |
6 cylinder in line |
|
Displacement |
8.3L |
|
Bore&Stroke |
114×135 mm |
|
Application |
Water pump set |
|
Dimension(L*W*H) |
1160*740*1160(mm) |
|
Weight |
610 kg |
|
Technical data of CumminsDCEC6CTAA8.3-P260 Pump Drive Engine |
|
|
Aspiration |
Turbocharged &Air-Air Intercooler |
|
Fuel System |
Mechanical Pump/Electronic Governor |
|
Maximum No Load Speed |
1870-1910 RPM |
|
Low idle speed |
750-850 RPM |
|
Compression ratio |
N/A |
|
Max overspeed |
2900 rpm |
|
Firing Order |
1-5-3-6-2-4 |
|
Performance Date of Cummins DCEC6CTAA8.3-P260 Pump Drive Engine |
|
|
Rated Output |
190KW/260HP |
|
Standby Output |
N/A |
|
Rated Speed(RPM) |
1800 |
|
Torque |
1008 N.m@1800 RPM |
|
Fuel Consumption/standby output |
39 kg/hr |

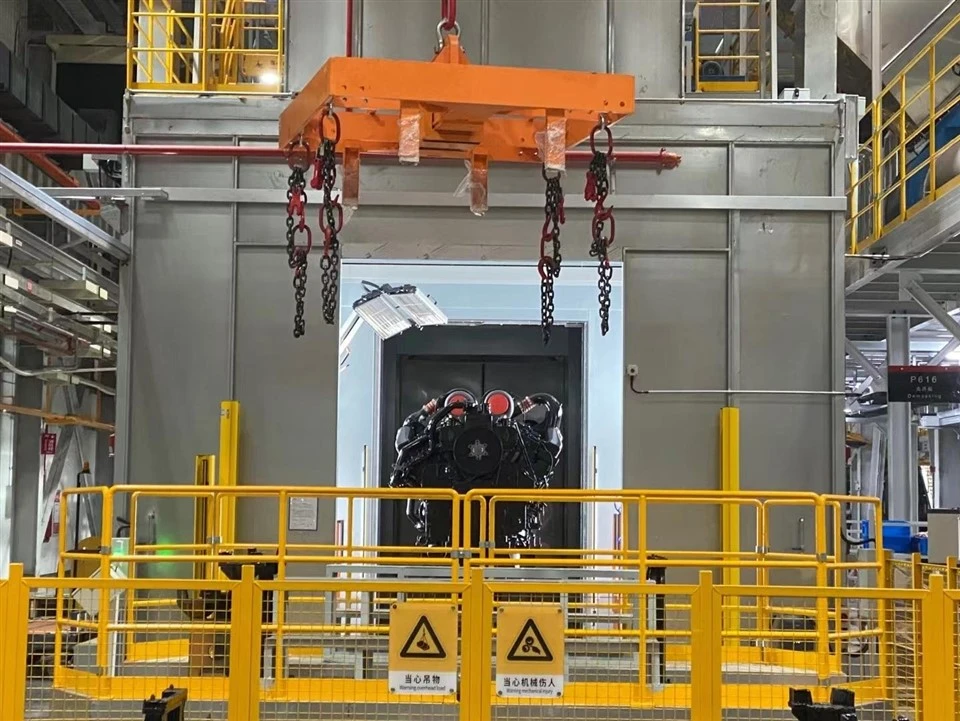

Chongqing Cummins Engine Co., Ltd.
As the sole R&D and manufacturing base of Cummins in China dedicated to high-horsepower engines, Chongqing Cummins is committed to becoming a global leader in high-horsepower engine technology research and intelligent manufacturing. The company integrates an innovation technology center, advanced manufacturing systems, and an efficient logistics network. It possesses comprehensive capabilities including mechanical performance testing, emission testing, durability testing, new product trial assembly, and modification of existing products. These capabilities enable Chongqing Cummins to meet the diverse and sophisticated demands of the Chinese high-horsepower market.
Cummins Fuel Systems (Wuhan) Co., Ltd.
By leveraging industrial Internet of Things (IoT) technology and intelligent environmental and energy management, Cummins Fuel Systems (Wuhan) Co., Ltd. has achieved clean production and sustainable development. Key initiatives include photovoltaic power generation, solar street lighting, circular packaging, hazardous waste reduction, oil mist collection and purification systems in workshops, integrated sewage treatment, and reduced use of disposable plastics. Hazardous waste generation has been reduced by 35%, and packaging materials are reused. Some facilities within the factory utilize photovoltaic power generation, producing 1.15 million kWh of electricity annually.
Xi'an Cummins Engine Co., Ltd.
In the era of Industry 4.0, Xi'an Cummins focuses on "intelligent manufacturing" as its core strategy. Integrating "Internet + manufacturing," the company features automation, flexibility, digitalization, and humanization. It employs industrial robots and automated guided vehicles (AGVs) for automatic online detection and multi-model mixed-line production. Through an intelligent warehousing system, it enhances operational efficiency. Data governance and analysis improve decision-making efficiency. Adhering to the concept of green production, Xi'an Cummins provides efficient power products that meet global standards.
