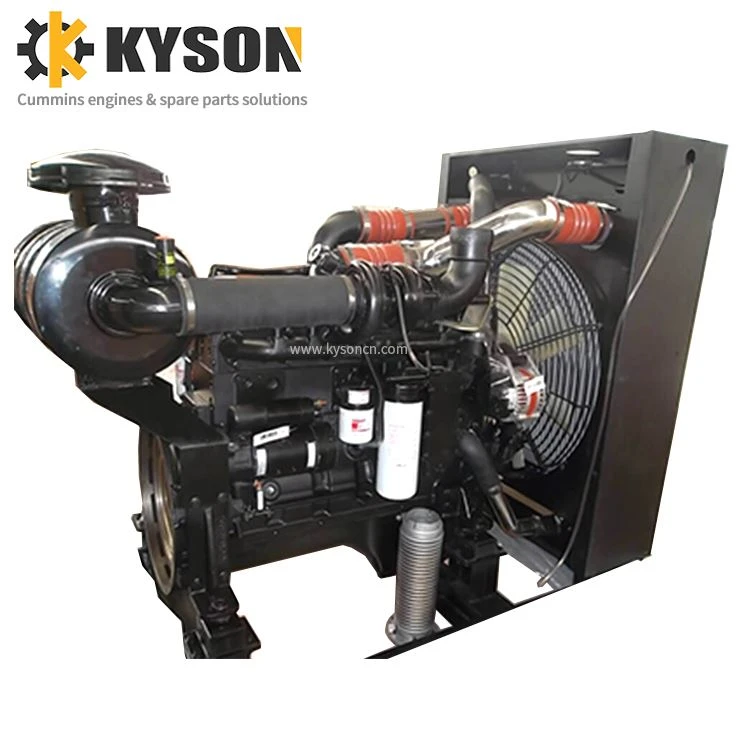

Cummins 6LTAA8.9-C360 Construction Machinery Engine With PTO
Type: 4 stroke,6 cylinder in line
Displacement: 8.9L
Bore&Stroke: 114×145 mm
Dry Weight: 650 KG
Send Inquiry
Product Details ofCummins 6LTAA8.9-C360 Construction Machinery Engine With PTO
Chongqing Kyson Machinery Equipment Co., Ltd. is one of the leading manufacturers and suppliers of cummins 6ltaa8.9-c360 construction machinery engine with pto in China. With abundant experience, our factory offer high quality products made in China with competitive price. Welcome to place an order.
|
General data of Cummins 6LTAA8.9-C360 Construction Machinery Engine |
|
|
Engine Mode |
Cummins 6LTAA8.9-C360 |
|
Type |
4 stroke,6 cylinder in line |
|
Displacement |
8.9L |
|
Bore&Stroke |
114×145 mm |
|
Dry Weight |
650 KG |
|
Center of gravity from front face of block |
427 mm |
|
Center of gravity above crankshaft centerline |
163 mm |
|
Technical data of Cummins 6LTAA8.9-C360 Construction Machinery Engine |
|
|
Aspiration |
Turbocharged Air-Air intercooled |
|
Emission Certificate |
ChinaⅡ |
|
FuelSystem |
BYCP7100 Pump/RSV Governor |
|
Minimum Low Idle speed |
800 RPM |
|
Maximum Governed Speed(10%of rated torque) |
2400 RPM |
|
Maximum over speed capability |
3150 RPM |
|
Compression ratio |
16.6:1 |
|
Performance Date of Cummins 6LTAA8.9-C360 Construction Machinery Engine |
|
|
Rated Output |
264KW360HP |
|
Rated Speed |
2200RPM |
|
Max Torque/Speed |
1400N.m/1400RPM |
|
Torque/Rated Speed |
1146N.m/2200RPM |
|
Minimum Fuel Consumption/speed |
195g/KW.h@1400RPM |
|
Maximum Fuel Consumption/speed |
222g/KW.h@2200RPM |
|
Fuel Consumption/rated speed |
222g/KW.h@2200RPM |
