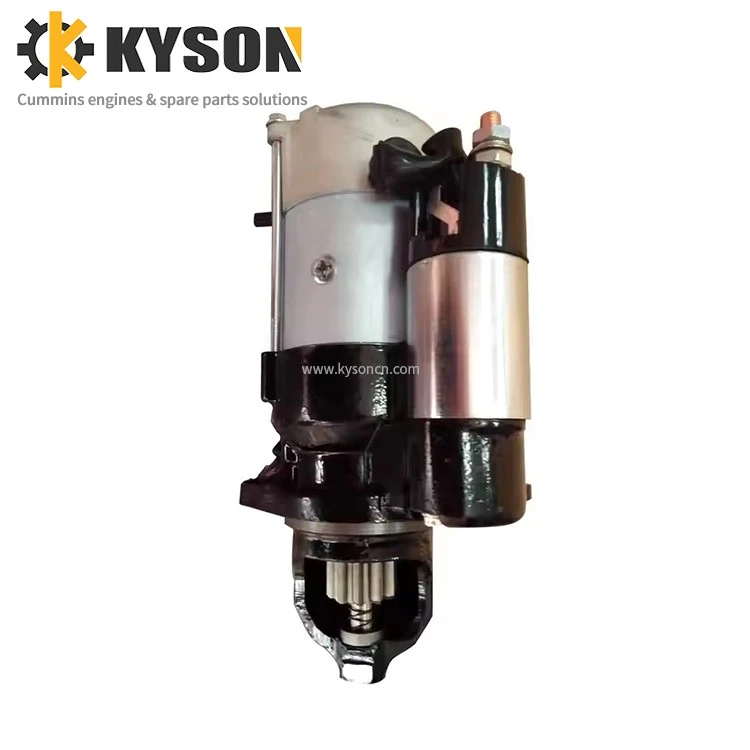

Diesel Engine Spare Parts Starter Assembly Truck Motor For 5287988 Starter

Desc.

Starter Assembly

Part No/TC type

5287988

Brand Name

Man, ABB, PBS, KBB, Napier MET, Weicai, JTH

Other parts

pls contact freely
if you need other P/N

Engine Type

Diesel engine,Gas engine,
Diesel Generators etc.

Spare Type

Cartridge, Nozzle ring , shaft, rotor complete, compressor wheel, diffuser, turbine casing , compressor casing , bearing casing, turbine blades, bearing

Condition:

Original , brand new, OEM, replacement, refurbished

Applicable industry

Marine engines,
Construction works ,oil platform
Energy & Mining etc

Key Word:

Original spare parts
and engine repair tool kits

Trade terms

FOB EXW CIF DDU DDP,

Door to door is available in some countries.

Delivery time:

Most parts are in stock, bulk order based on qty

Payment

T/T, L/C,D/A, Alipay, Western Union, Paypal etc.

Place of origin

China/Germany/South Korea USA/Japan/Sweden /UK/Singapore/Taiwan

Package

Neutral or original packaging

About the product

Introduction
The starting motor is characterized by its broad applicability, simple structure, ease of operation and maintenance, and cost-effectiveness. It is extensively utilized in marine medium-speed diesel engines. This type of starter is a turbine-driven motor that employs an internal piston to engage with the pinion gear, thereby initiating the rotation of the diesel engine. The starting system also comprises components such as a pressure regulator valve and a starting solenoid valve. Upon activation of the solenoid valve, externally supplied high-pressure air (3MPa) passes through the integrated pressure regulator, reducing the pressure to approximately 1MPa. This regulated air then flows into the transmission housing via a bypass line, causing the pinion gear to extend gradually and mesh with the flywheel ring gear. Once fully engaged, the main circuit's high-pressure air enters the starting motor, driving the internal piston which, in turn, actuates the turbine impeller to rotate the pinion gear. The pinion gear subsequently drives the flywheel ring gear, leading to the rotation of the flywheel, crankshaft, and pistons, ultimately resulting in the successful ignition of the diesel engine.

Working Principle
The operational principle of the starter can be elucidated through the functioning of its primary component, the DC motor. A DC motor converts electrical energy into mechanical energy based on the principle that a current-carrying conductor experiences an electromagnetic force within a magnetic field. To ensure adequate torque and stable rotational speed, the armature of the motor is wound with multiple coils, and the number of commutator segments increases proportionally. This design ensures sufficient torque generation and consistent performance.
