Description

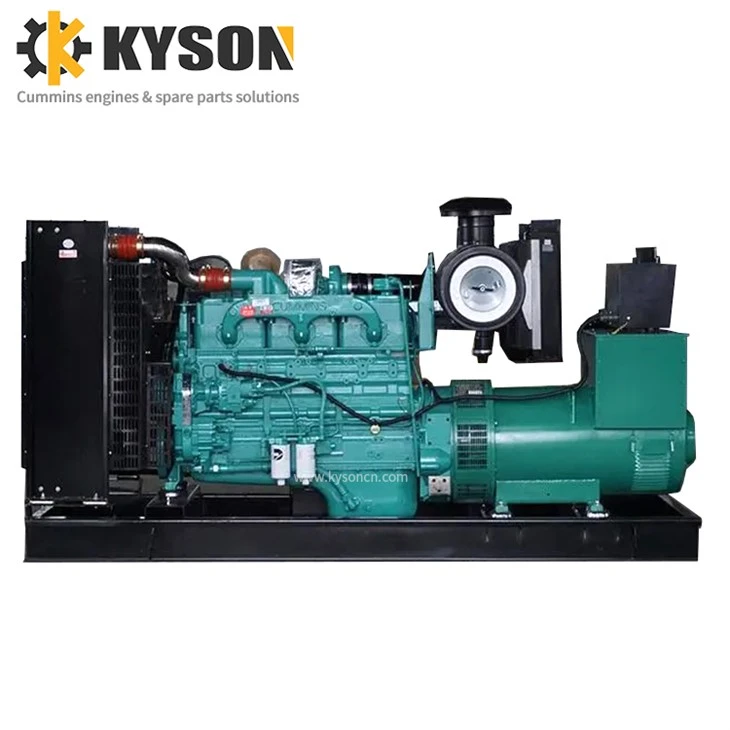

General data of Cummins CCEC NTAA855-G7A Diesel Engine for Generator Set
Engine Model	Cummins CCEC NTAA855-G7A
Type	4 Stroke, In-line, 6 Cylinder
Displacement	14L
Bore&Stroke	140*152 mm
Dry Weight(Fanto flywheel engine)	1270 KG
Wet Weight(Fan to flywheel engine)	1320 KG
Center of Gravity from Rear Face of Flywheel Housing	704 mm
Center of Gravity Above Crank shaft Center line	140 mm

Technical data of Cummins CCEC NTAA855-G7A Diesel Engine for Generator Set
Aspiration	Turbocharged, Air-AirAftercooled
Fuel System	PT Pump Direct Injection
Coolant capacity-engine only	20.8L
Oil Pan Capacity-LowHigh	28.4/36 L
Idlespeed	575-650 RPM
Maximum No-Load Govemed Speed	1800 RPM
Maximum Over speed Capability	2700 RPM
Frictional loss power/rated output	22 KW
Compression ratio	14.0:1
Piston Speed	7.62 m/sec
Firing Order	1-5-3-6-2-4

Performance Date of Cummins CCEC NTAA855-G7A Diesel Engine for Generator Set
Rated Output/Speed
Standby Output/Speed	407KW/545HP/1500RPM
Torque/Rated Output
Torque/Standby Output	2591N.m/1500RPM
Fuel Consumption/Rated Output
Fuel Consumption/Standby output	108 Lh

The above is some basic information about the Cummins CCEC NTAA855-G7A diesel engine generator.

We have more engines and other models available for supply, but the page is limited and we cannot list all models on it. If you need anything else, please contact us for a quote. If you cannot find what you need on our website, please click here for online consultation.
